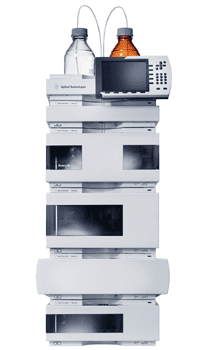

1200 Series Rapid Resolution LC
System
Secure performance on the fastest, most efficient and most
flexible LC in the world!
Rapid Resolution LC (RRLC) on the new Agilent 1200 Series Rapid
Resolution LC System (1200 RRLC System) provides up to 20 times
faster analysis and 60 % higher resolution than conventional HPLC
without sacrificing resolution, precision or sensitivity. While
pushing performance to new limits the system can still run any
traditional HPLC method without compromise. Further, a special
high-throughput configuration allows sequential execution of 2,000
samples per day on a single system - all without giving up data
quality or method flexibility.
The system features more than 70 new Rapid Resolution High
Throughput (RRHT) columns and a new high-performance pump that can
handle flow rates from 0.05 to 5 mL/min at up to 600 bar pressure
and offers a configurable delay volume for optimized support of
narrow and standard bore columns. It also features a new
high-performance degasser, autosampler, column compartment and
high-speed detectors.
The Agilent 1200 Series Rapid Resolution LC System was designed to
provide highest analysis speed and resolution while keeping system
pressure at a minimum. As a consequence it maintains the robustness
and operating principles known from conventional HPLC instruments
and methods. The unique design makes the 1200 RRLC a universal LC
for the analytical flow rate range with column dimension from 1 to
4.6-mm ID, 10 to 300-mm length and particle sizes from 1.5 to 10 µm.
Features and Benefits
- Up to 20x faster than conventional HPLC with same or
better data quality (resolution, sensitivity, precision)
- 60 % higher resolution compared to HPLC with same or
better data quality (resolution, sensitivity, precision)
- Configurable delay volume for universal applicability
by uncompromised support of narrow and standard bore columns -
both RRLC and HPLC
- Uncompromised compatibility with existing HPLC methods
using column length up to 300 mm by standard delay volume
configuration (600 - 800 µL)
- Optimum support of LC/MS on narrow bore columns by low
delay volume configuration (120 µL)
- Compliant with strictest regulatory performance
requirements
- Broad range of more than 70 RRHT columns for wide
applicability
- Easy, fast and secure method transfer from HPLC to RRLC
by identical column chemistry of RRHT and HPLC columns
- 2000 samples/day on high throughput configuration, with
Alternating Column Regeneration (ACR) using system setup with
two pumps, two columns and a 2Ps/10Pt valve for alternating column
switching.
- Modular, scalable and open system offers future
expandability and adaptability
- Compatibility with Agilent 1100 Series modules allows
stepwise transition to full RRLC capabilities
- Agilent 1100 Sereis emulation mode allows to run the Agilent
1200 Sereis RRLC system under 3rd party software that does not
offer 1200 control yet, but 1100 control only.
- Agilent Intelligent Services for remote performance and
utilization monitoring and predictive maintenance.
- "Data never lost insurance" by built-in data recovery card
(DRC) prevents data losses in case of communication breakdowns
between instrument and PC (1200 Series DAD SL and 1200 Sreis MWD
SL)
- Improved data traceability by RFID tags for all flow
cells and UV lamp record parameters like flow cell dimensions,
lamp usage and product/serial number and save them with raw data
file.
- Full compliance by new and flexible Automated
Compliance Engine (ACE)
|
 |
